AC 110V 220V 50W 70W 90W E40 High Bay LED Light Bulb

Item No.: BNL-HBC30W
Category: LED Spotlight & Bulb
Features:
COB techology
Lead free, environmental friendly
NO noise, NO flicker, NO UV and IR.
Long life span more than 35000 hours
Forging Aluminum+Patent Fan Heating Dissipation structure

Pubtime:2024-11-15 15:20:05
Visit:1193 | View Larger Image

086-755-21046574 sales@benorylighting.com

Products Details Download Data Product Inquiry

High Brightness Industrial COB LED 50W 70W 90W E40 High Bay LED Bulb

Specification:

Item No.		BNL-HBC30W	BNL-HBC50W	BNL-HBC70W	BNL-HBC90W
Optics Index	LED Source（LED）	Bridgelux COB
	Luminous Flux (lm)	>90lm/W
	CCT（K)	WW/ NW/ CW
	CRI	>80	>80	>80	>80
	Beam Angle	glass lens: 60°//90°/120°
	1000 hrs decay rate (%)	<1%
	Lifespan(Hrs)	>35000
Electric Index	Input Voltage（V)	AC 85 ~ 265V
	Frequency (Hz)	50/60 Hz
	Power (W)	30W±5%	50W±5%	70W±5%	90W±5%
	PF	>0.9
	Starting time (S)	<0.5 S
	Pressure Test	3750V
Structural Index	Materials	Aluminum + Glass Lens
	Dimensions（mm）	Max. ¢98*166		Max. ¢98*174
	Net Weight (kg）	Lamp with Glass lens：0.7
	Water Proof (IP)	IP20
General	Working temperature &humidity	-25℃ ～ 65℃、10% ～ 90% R.H.
	Storage temperature &humidity	-40℃ ～ 65℃、0% ～ 95% R.H.
	Certificates	CE FCC
	Environmental Directive	RoHS

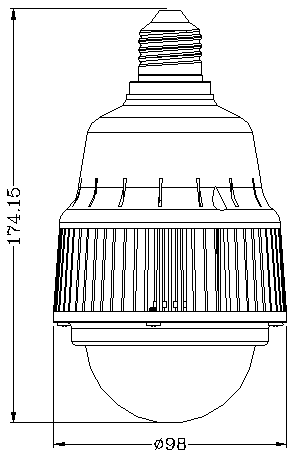

Dimension(mm):

For 30-40W For 50~60W

Package:
