Surface Mount 24V DC Smart RGB+CCT LED Downlight for Dali Loxone KNX Zigbee Casambi Automation Lighting

Item No.: BNL-DL12RGBCCT -CD
Category: New Product
Private tooling high quality aluminum DC 24V Smart RGBCCT/RGBW LED downlight, surfact mount with magnatic design, fast lock teminal design make the installation very easy; there is also another recessed type, they are ideal for DC 24V KNX, DALI, LOXONE, DMX, TUYA, CASAMBI smart control units

Pubtime:2025-07-07 14:56:13
Visit:549 | View Larger Image

086-755-21046574 sales@benorylighting.com

Products Details Download Data Product Inquiry

Surface Mount 24V DC Smart RGB+CCT LED Downlight for Dali Loxone KNX Zigbee Casambi Automation Lighting

Specification:

Voltage: DC 24V

Power: 10W (8W/12W can be customized)

Beam Angle: 17°/24°/36°/50° (this is COB led beam in the middle)

Styles Available:

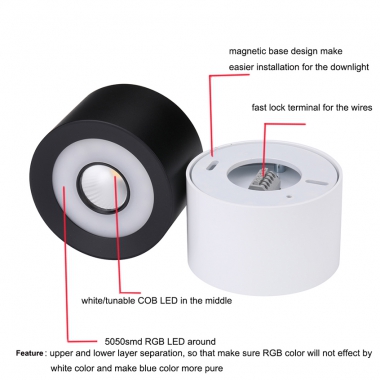

.Surface mount led downlight (magnetic base+ spring pressing terminal , can be quickly install); .Reccessed RGBW/RGB CCT led downlight also available

Materials: Aluminum Size: D80*50mm

Lighting Color: RGB+CCT(2000-6000K); RGBW(W 1800-6500K)

Shell Color: white/black

Certificate: CE, ROHS

Warranty: 3 years

Special Design of this product:

White COB LED in the middle+SMD RGB LEDs around, upper and lower layer separation, so the RGB color will not effect by white color, especially the blue color will be more pure.

Compatible with:

KNX or Dali Dimmer;

PWM LOXONE Dimmer / Loxone tree &Air;

or DMX512 Controller;

or 0-10/1-10V dimmable driver...

rgb cct downlight
